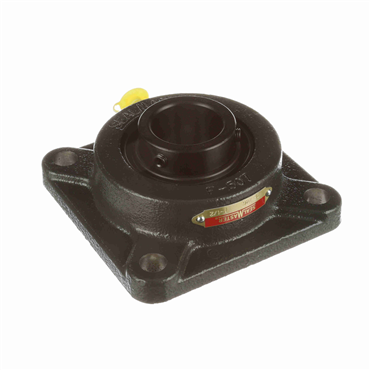

Sealmaster | SF-24C | 703434 / Gold Line Ball Bearing

SF-24C

703434 / Gold Line Ball Bearing

Item #101180354

Auto Replenish

each One-time purchase

Product Details

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation

Specifications

Measure Units	Inch
Platform	Gold Line Ball Bearing
Replaceable Insert	Yes
Housing Material	Cast Iron
Pilot Configuration	No Pilot
Housing Width (in)	5.125
T Core	3.5
Inner Race Length (in)	2.063
Outer Ring Land Profile	Standard
End Cap	No
Relubricatable	Yes
Inner Race Heat Treat Method	Zone-Hardened
Retainer Type	Land Riding Retainer
Overall Width (in)	5.125
Duty Series	Standard
Misalignment Type	Static Only
Radial Static Load Capacity (lb)	4467
Bore Size - Inch	1.5
Length Through Bore (in)	2.063
Insert Material	52100 Bearing Steel, Black Oxided
Bore Shape	Straight
Inner Ring OD (in)	2.0625
Bearing Insert Coating	Black Oxide Coated
Housing Base	Solid
Housing Construction	One Piece
Overall Height (in)	2.0156
Internal Clearance	Standard
Lubrication	Lithium Complex NLGI 2 Grease
Bolt Center-to-Center Length (in)	4
Overall Length (in)	5.125
Maximum Operating Temperature	220
Seal Type	Contact Seal
Bolt Size (in)	0.3750
Expansion	No
Centerline to Front Face (in)	1.1875
Insert No.	2-18C
Radial Dynamic Load Capacity (lb)	7340
Foot Height (in)	0.5625
Weight	5.15 LB
EAN or UPC	662461022016
