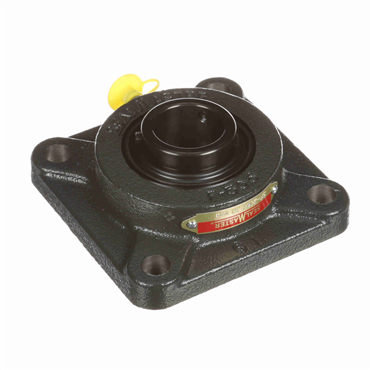

Sealmaster | SF-206C | 710331 / Gold Line Ball Bearing

SF-206C

710331 / Gold Line Ball Bearing

Item #101180402

Auto Replenish

each One-time purchase

Product Details

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Single lip contact seal
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation

Specifications

Insert No.	5206C
Bolt Center-to-Center Length (in)	3.2500
Housing Material	Cast Iron
Lubrication	Lithium Complex NLGI 2 Grease
Outer Ring Land Profile	Standard
Radial Dynamic Load Capacity (lb)	4381
Duty Series	Standard
Bore Shape	Straight
Relubricatable	Yes
Bearing Insert Coating	Black Oxide Coated
Insert Material	52100 Bearing Steel, Black Oxided
Inner Ring OD (in)	1.59375
Foot Height (in)	0.53125
Maximum Operating Temperature	220
Measure Units	Metric
Replaceable Insert	Yes
Bore Size - Metric	30
Inner Race Heat Treat Method	Zone-Hardened
Overall Length (in)	4.25
Housing Width (in)	4.25
Expansion	No
Inner Race Length (in)	1.594
T Core	2.875
Bolt Size (in)	0.4375
Platform	Gold Line Ball Bearing
Pilot Configuration	No Pilot
Housing Base	Solid
Overall Height (in)	1.5625
Centerline to Front Face (in)	0.875
End Cap	No
Retainer Type	Land Riding Retainer
Radial Static Load Capacity (lb)	2567
Length Through Bore (in)	1.594
Seal Type	Contact Seal
Overall Width (in)	4.25
Internal Clearance	Standard
Housing Construction	One Piece
Misalignment Type	Static Only
Weight	3.6 LB
EAN or UPC	662461054734
