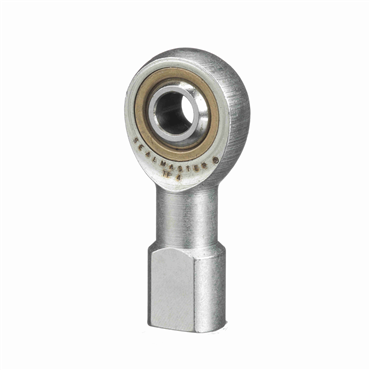

- Commercial Female Rod End
- 1/4" Bore
- 1/4-28 Right Hand Thread
- Non-Relubricatable
- Three-Piece Design
description
- Three-piece construction offers flexibility for alternative race materials designed to solve specific application problems.
applications
- Agricultural equipment
- Bakeries
- Bottling equipment
- Construction machinery
- Dairy industry
- Exercise machines
- Farm and garden machinery
- Food processing
- Industrial fans
- Labeling machinery
- Material handling
- Mining machinery
- Off-road equipment
- Packaging
- Printing
- Recreational equipment
- Textile
- Transportation equipment
features
- Outer member is made of carbon steel with protective plating for corrosion resistance
- Race is made of plated carbon steel
- Ball is made of alloy steel, heat-treated and chrome-plated
caution
- Catalog load ratings are not applicable when grease fittings are specified because of the reduced cross section of the head
| Head Diameter | 3/4 in |
| Ball Flat Dia. | 0.331 in |
| Ball Dia. | 1/2 in |
| Lube Fitting | w/o Lube Fitting |
| Grade | Commercial |
| Thread Pitch | N/A |
| Across Wrench Flats | 3/8 in |
| Thread Type | UNF |
| Static Load Rating [Max] | 2,700.00 lbf |
| Liner | N/A |
| Lubrication | Non-Relubricatable |
| Threads per Inch | 28 |
| Length Through Bore | 3/8 in |
| Base Dia. | 0.469 in |
| Right / Left Hand | Right Hand |
| Thread Size | 1/4 |
| Bearing Type | Plain Bearing |
| Misalignment Range | ±8° |
| Ball Material | Tin Nickel Plated Carbon Steel, Case Hardened |
| Housing Material | Carbon Steel, Protective Coated for Corrosion Resistance |
| Housing Width | 9/32 in |
| Bore Size | 1/4 in |
| Insert Material | Brass |
| Weight | 0.05 LB |
| EAN or UPC | 662288723479 |
