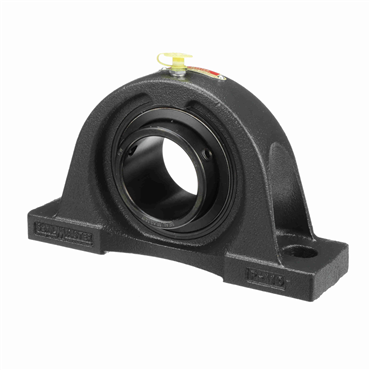

NP Series Standard-Duty Pillow Block

NP-35

NP Series Standard-Duty Pillow Block
Item #100736417
  • Felt Labyrinth Seal Type
NP Series Standard-Duty Pillow Block
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • Felt Labyrinth Seal Type

description

  • Most widely used, normal-duty pillow block with high base-to-shaft centerline dimensions.

features

  • Powder coated epoxy cast iron housing with extended inner ring bearings
  • Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation
Duty Series Standard
Bore Shape Straight
Housing Material Cast Iron
Maximum Operating Temperature 220
Retainer Type Land Riding Retainer
Overall Height (in) 5
Misalignment Type Static Only
Bolt Center Min (in) 6.5
Foot Height (in) 0.75
Platform Gold Line Ball Bearing
End Cap No
Seal Type Felt Labyrinth Seal
Bolt Size (in) 0.625
Replaceable Insert Yes
Centerline to Front Face (in) 1.313
Relubricatable Yes
Outer Ring Land Profile Standard
Inner Ring OD (in) 2.469
Measure Units Inch
Bearing Insert Coating Black Oxide Coated
Lubrication Lithium Complex NLGI 2 Grease
Housing Base Solid
Overall Length (in) 8.625
Inner Race Length (in) 2.188
Housing Construction One Piece
Base Width (in) 2.375
Insert No. 2-23
Brand. Sealmaster
Bore Size - Inch 2.188
Bolt Center Max (in) 7
Insert Material 52100 Bearing Steel, Black Oxided
Expansion No
Weight 9.52 LB
EAN or UPC 662461001769
