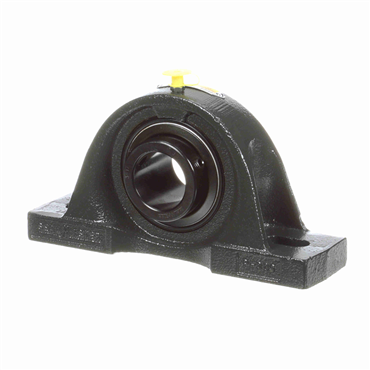

MP-23CXU

717347 / GOLD HVAC COMMERCIAL

Item #101184855

Auto Replenish

each One-time purchase

Alternate Products

Dodge P2BSCMAH107

SCMAH Series Air Handling Medium-Duty Cast Iron Pillow Block

Item #100939352

each

Compare

P2BM Series Air Handling-Duty Cast Iron Pillow Block

Item #113734524

each

Compare

Product Details

Powder coated epoxy cast iron housing with extended inner ring bearings
Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
Air Handling noise check for quiet operation
Looser than standard housing fit for ease of alignment on lightweight frames
Felt labyrinth seal and flinger for dusty and dirty environment
Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation

Specifications

Measure Units	Inch
Replaceable Insert	Yes
Bolt Center Max (in)	6.375
Brand.	Sealmaster
Duty Series	Medium
Base Width (in)	2.25
Bearing Insert Coating	Black Oxide Coated
Radial Dynamic Load Capacity (lb)	7340
Platform	Air Handling
Housing Base	Solid
Bore Size - Inch	1.438
Maximum Operating Temperature	220
Bolt Size (in)	0.5000
Foot Height (in)	0.75
Bore Shape	Straight
Seal Type	Felt Labyrinth Seal
Base to Center Height (in)	2.125
Expansion	No
Bolt Center-to-Center Length (in)	5.0000 to 6.3750
Insert No.	3-17
Housing Construction	One Piece
Inner Race Length (in)	1.9375
Overall Height (in)	4.1875
Radial Static Load Capacity (lb)	4467
Centerline to Front Face (in)	1.1875
End Cap	No
Misalignment Type	Static Only
Relubricatable	Yes
Retainer Type	Land Riding Retainer
Overall Length (in)	8
Lubrication	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
Insert Material	52100 Bearing Steel, Black Oxided
Bolt Center Min (in)	5
Outer Ring Land Profile	Standard
Weight	6.6 LB
EAN or UPC	662461093955
