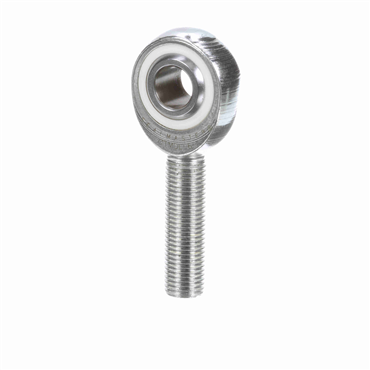

- Left Hand Commercial Male Rod End
- Self-Lubricating
- 3/8" Bore
- 3/8-24 Thread
description
- Three-piece construction offers flexibility for alternative race materials designed to solve specific application problems.
applications
- Agricultural equipment
- Bakeries
- Bottling equipment
- Construction machinery
- Dairy industry
- Exercise machines
- Farm and garden machinery
- Food processing
- Industrial fans
features
- Static load capacity 800 to 6,600 lb
- Maximum temperature 150 °F
- Withstands vibration
- Maintenance-free
caution
- Catalog load ratings are not applicable when grease fittings are specified because of the reduced cross section of the head
| Thread Size | 3/8 |
| Bore Size | 0.375 in |
| Threads per Inch | 24 |
| Housing Material | Carbon Steel, Protective Coated for Corrosion Resistance |
| Lubrication | Self-Lubricating |
| Thread Pitch | N/A |
| Insert Material | Delrin® Acetal Resin |
| Ball Material | Alloy Steel, Heat Treated, Chrome Plated |
| Static Load Rating [Max] | 2150 lbf |
| Length Through Bore | 0.5 in |
| Ball Dia. | 0.718 in |
| Thread Type | UNF |
| Head Diameter | 1 in |
| Misalignment Range | ±6° |
| Grade | Commercial |
| Ball Flat Dia. | 0.517 in |
| Lube Fitting | w/o Lube Fitting |
| Liner | N/A |
| Housing Width | 0.406 in |
| Right / Left Hand | Left Hand |
| Bearing Type | Plain Bearing |
| Weight | 0.11 LB |
| EAN or UPC | 662288725893 |
