- Crimp Fitting
- 90° Fitting Angle
- 1 in Tube Outside Diameter
- 1 in Hose Inside Diameter
- 3.56 in Overall Length
applications
- General-purpose low, medium and high pressure hydraulics
features
- Compatible with the most Weatherhead standard and newer generation hose styles
- Combining best-in-class technologies to meet and exceed the highest globally recognized standards for one and two wire braid hydraulic hose assemblies
- Hose ends have a scribe line around the circumference of the socket to easily identify the location where the Coll-O-Crimp collets are positioned for crimping
- Advanced "Bite-the-Wire" design provides higher operating and burst pressure
- Eliminates cool down leakage
- Flat crimp provides low profile for easier routing
| Plating | Dura-Kote™ Zinc Plating |
| End Type 2 | Line/Hose/Tube |
| Rigid/Swivel | Swivel |
| Compatible Hose | H0105 (-06 thru -12, -20), H0106 (-04 thru -10), H104, H115 (-04 thru -20), H116 (-04, -06, -08), H145, H145R, H1571 (-12 only), H1776 (-04 thru -20), H1777 (-04, -06, 08), H1812 (-04 thru -20), H190, H190H, H1981 (-04, -06, -08), H1982 (-06 thru -16), H245, H245L, H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H9949 |
| Hose Cut-Off Factor | 2.2 in |
| Finish | Dura-Kote |
| Compatible Tube O.D. | 1 |
| End Gender 1 | Female |
| Tube O.D. | 1 in |
| O.D. | 1.9410 in |
| Thread Size | 1 5/16-12 |
| End Size | 1 JIC(f), 1 Hose Crimp |
| Item Type | Fitting Assembly |
| End Types | JIC & Hose Crimp, Hose Crimp & JIC |
| Style | Crimp |
| Hose I.D. | 1 in |
| Hex Size | 1 1/2 in |
| Hex Size 1 | 1 1/2 in |
| Material | Carbon Steel |
| Fitting Angle | 90° |

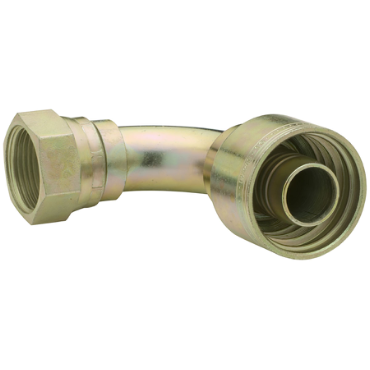

| Fitting Type | JIC 37° Female Swivel 90° Elbow |
| Threads per Inch | 12 |
| Height | 2.390 in |
| Hose Dash Size | 16 |
| Overall Length | 3.560 in |
| No. of Ends | 2 |
| Thread Sealant | No |
| End Type 1 | JIC 37 |
| Compatible Hose I.D. | 1 |
| Hole Dia. | 0.7600 in |
| Weight | 0.91 LB |
