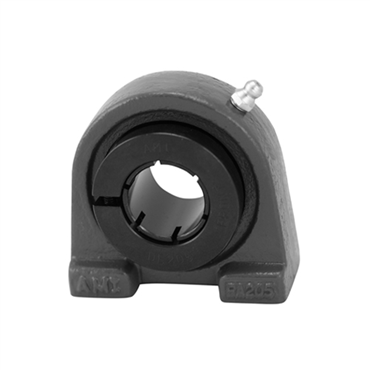

Wide Inner Ring Cast Iron Housing Material Pillow Block

UEPA205

Wide Inner Ring Cast Iron Housing Material Pillow Block
Item #101509068
  • 25 mm Shaft Diameter
  • 36.5 mm Center Line To Base Dimension
Wide Inner Ring Cast Iron Housing Material Pillow Block
Price Unavailable
Price Unavailable
Pricing is unavailable at this time. Please contact Customer Service for assistance.
Online Ordering Restricted
Please contact Customer Service for assistance.
Contact Customer Service
    Shipment Options
  • 25 mm Shaft Diameter
  • 36.5 mm Center Line To Base Dimension
Shaft Dia. 25 mm
Base Length 84 mm
Length Through Bore 35.4 mm
Lubrication Relubricatable
Bearing Type Ball Bearing
Base Height N/A
Housing PA205
Housing Height 72 mm
Duty Series Normal
Housing Construction 1 Piece
Thread Size M10
Lubrication Fitting Tap 1/4-28 UNF
Inch/Metric Metric
Seal Type Contact Seals
Bearing Insert UE205
Housing No. PA205
Bolt Hole Length 15 mm
Series UEPA200
Locking Device Concentric Locking Collar
Insert Material AISI 52100 Steel
Bolt Hole Spacing 56 mm
Bearing Design Non-Expansion
Pillow Block Type Thru-Bolt
Locking Style Accu-Loc
Base Width 38 mm
Housing Material Cast Iron
Relubricatable Yes
Bolt Holes 2
Mounted Unit Duty Normal-Duty
End Type Open End
Weight 1.7 LB
EAN or UPC 808250117352
