VXFL-4-G

VX-Series Female Rod End

Item #101550755

Auto Replenish

each One-time purchase

Alternate Products

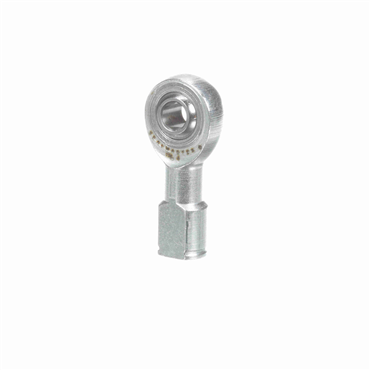

Sealmaster TRL 4

1510400000 / RODENDS STANDARD

Item #101183021

each

Compare

Aurora Bearing Co. MG-4

MG Series General Purpose Female Rod End

Item #101705278

each

Compare

Spherco TRL4

Left Hand Female Rod End, Precision Grade

Item #101753721

each

Compare

Boston Gear HFL-4

Left Hand Female Rod End, Precision Grade

Item #101836222

each

Compare

Heim Bearings HFL4

UNIBAL Precision Series

Item #101992945

each

Compare

Product Details

Specifications

Ball Material	Mild Steel Case Hardened Plated
Thread Pitch	N/A
Housing Width	3/4 in
Thread Size	1/4
Liner	N/A
Lubrication	Non-Relubricatable
Head Diameter	0.281 in
Housing Material	Low Carbon Steel Plated for Corrosion Resistance
Thread Type	UNF
Lube Fitting	w/o Lube Fitting
Bore Size	0.25 in
Grade	Precision
Misalignment Range	±13°
Threads per Inch	28
Ball Flat Dia.	0.346 in
Length Through Bore	0.375 in
Outer Race Material	Sintered Bronze
Ball Dia.	0.51 in
Bearing Type	Plain Bearing
Right / Left Hand	Left Hand
Static Load Rating [Max]	2300 lbf
Weight	0.05 LB
