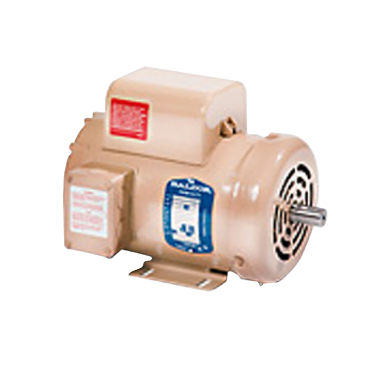

- 1 1/2 HP, 1800 RPM, 60 Hertz, 230 Volt, Single Phase, TEFC - Totally Enclosed Fan Cooled, Rigid Base, 56z Frame, 1.0 SF
applications
- Grain bins
features
- Corrosion-resistant epoxy finish
- Slotted fan cover designed to prevent clogging
- Manual thermal with cover
caution
- Motors misapplied in hazardous environments can cause a fire or explosion, resulting in destruction of property, serious injury or death
- Only the end user or a qualified underwriter is to identify and select the proper class, group, division and temperature code motor to meet the requirements of each installation
- Service center personnel can advise what listings and approvals motors carry, but cannot evaluate nor recommend what motors may be suitable for use in hazardous environments
| Poles | 4 |
| BALD Family Names | Farm Duty Motor, Single Phase Motor |
| Mounting | Rigid Base |
| Full Load Amps | 7.5 |
| Full Load Pf | 84 |
| Design | L |
| Product Line | RG |
| Rotation | R |
| Phase | Single Phase |
| Motor Application | Grain Stirring |
| Full Load Efficiency | 79 % |
| Enclosure | TEFC |
| Service Factor | 1 |
| Frame | 56Z |
| Frame Size | Shaft Input, Not a C-Face |
| Hz | 60 Hz |
| C Face Kit | 35-8762 |
| Voltage | 230 |
| Motor Shaft Size | 5/8 in |
| Mounting Style | F-1 |
| Enclosure Designation | TEFC - Totally Enclosed Fan Cooled |
| Epact Nominal Full Load Efficiency | 84 % |
| RPM | 1800 rpm |
| VoltCode | C |
| Mult. Sym. | K |
| Drive End Bearing | 6205 |
| Full Load rpm | 1725 rpm |
| Efficiency Group | Standard Efficient |
| Open End Bearing | 6203 |
| Voltage Rating | 230 |
| Useable at 208V | No |
| RefPicture | GSL |
| Type | 3528LC |
| Frame Material | Epoxy Coated |
| Brake Feature | No |
| Washdown Duty | No |
| Weight | 42.0 LB |
| EAN or UPC | 781568122082 |
