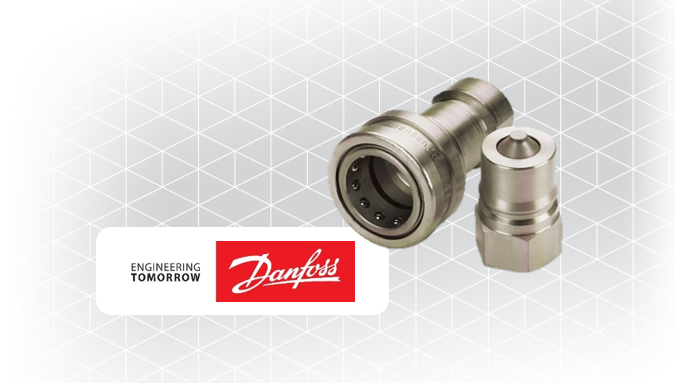

Hansen HK Series Quick Disconnect Couplings

Hansen couplings feature strong flow rates and high pressure ratings, making them an industry leader for quick disconnects. Each series represents the most common hydraulic coupling applications and meet ISO industry standards, allowing for easy interchange from lesser performing brands.

Features:

Meets dimensional requirements to ISO standard 7241-1 Series B
The coupling that sets the industry standard
Rated for full vacuum sizes 1/8" - 3/4"
Self-sealing poppet valve design provides excellent high & low pressure sealing
Seal options available in PTFE - Neoprene - FKM - EPDM - Kalrez^®

Best Industries:

✓ Agriculture
✓ Hydraulic tool
✓ General Industry
✓ Construction
✓ Fluid Transfer
✓ Transportation
✓ Military
✓ Law Enforcement / Rescue
✓ Chemical
✓ Oil & Gas
✓ Consumer Products. ✓ HVAC
✓ Food & Beverage
✓ Trucks
✓ Medical

Not sure which series of Hansen Coupling is right for you?

Check out the Comparison Table below:

Series	HK (ISO B)	5600 (ISO A)	FF / MLFF (ISO 16028)	5100 (Wing Style)
Application	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Sizes	-2, -4, -6, -8, -12, -16	-4, -6, -10, -12, 16	-4, -6, -8, -10, -12, -16, -20, -24, -32	-4, -6, -8, -10, -12, -16, -20, -24
Material	Steel, Brass, 303 SS, 316 SS	Steel, 316 SS	Steel, 316 SS	Brass
Connection Type	Female NPTF, FSAE	Female NPT, FSAE	Female NPT, FSAE, ORB	Female NPT
Commercial Features	Industry leading pressure and flow performance	Up to 60% higher flow performance among leading competitors. Industry leading warranty provided by Danfoss.	Industry leading pressure and flow performance. Higher flow means less fuel consumption, saving energy costs.	Industry leading flow performance drives greater efficiency of work output
