AMI Corrosion Protection Bearing Units


AMI is proud to present their corrosion protection bearing units. With a variety of housing series, specifications and usages, these bearings are specially designed, including those ideal for HACCP requirements.

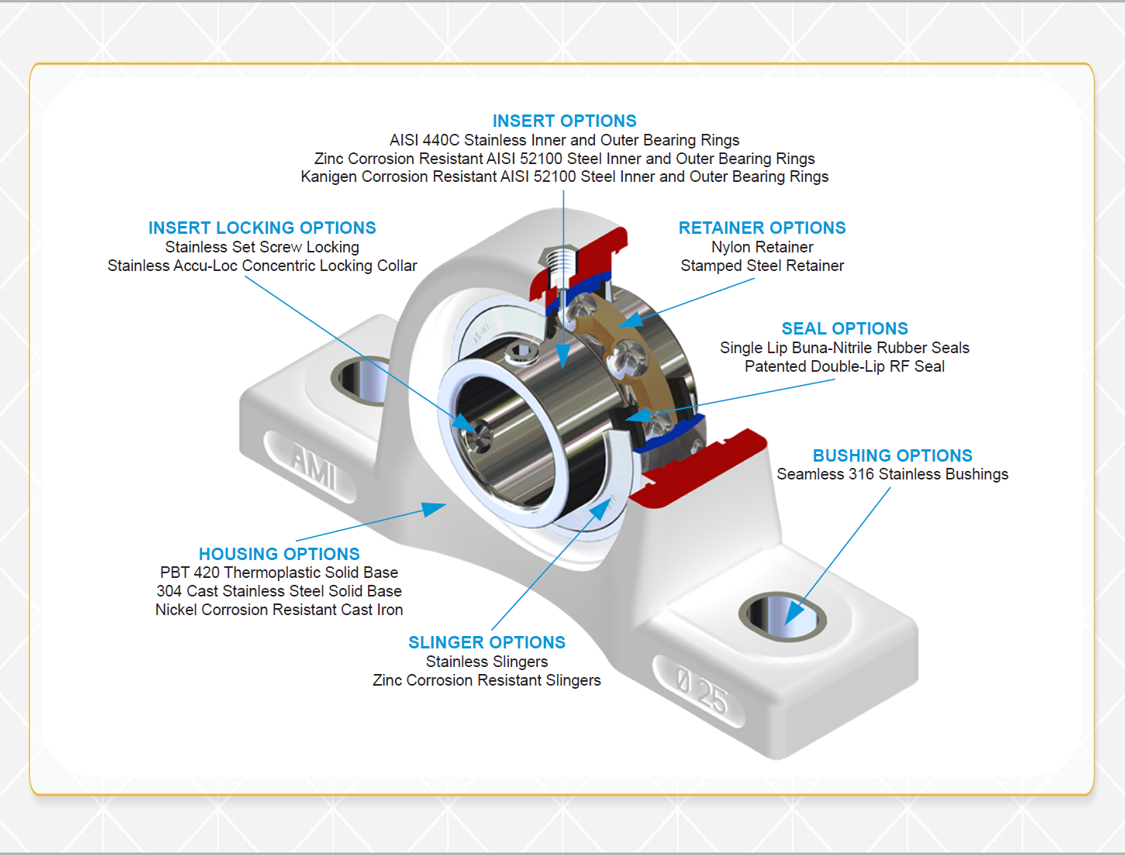

Features include those available in stainless steel, zinc protection steel, and kanigen protection steel materials with set screw or Accu-Loc® locking styles. Bearing inserts in various specifications, pillow block, two-bolt flange, three-bolt flange, four-bolt flange, piloted flange cartridge, take-up and hanger unit housing styles made with thermoplastic, nickel protection cast iron, or stainless steel.

Prime Series


AISI 440C stainless steel bearing insert,
PBT thermoplastic housing



Typical Applications:
Beverage, dairy, poultry & fresh meat processing, fruit & vegetable processing, pharmaceutical
Bore Size Range Availability:
1/2" to 2" and 12mm to 50mm

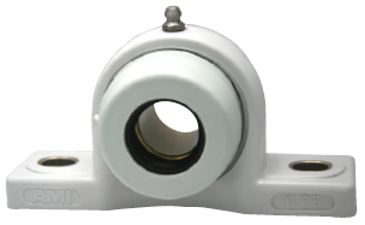

Shur-Seal Series


Stainless steel or zinc corrosion resistant AISI 52100 steel bearing insert, PBT thermoplastic housing with closed & open covers and back seals

Typical Applications:
Beverage, seafood, poultry & fresh meat processing, pickle processing, citrus processing
Bore Size Range Availability:
1/2" to 1-1/2" and 20mm to 50mm

Select Plus Series


Zinc corrosion resistant AISI 52100 steel bearing insert, PBT thermoplastic housing

Typical Applications:
Snack foods, pickers, packers, agriculture
Bore Size Range Availability:
1/2" to 2" and 15mm to 50mm

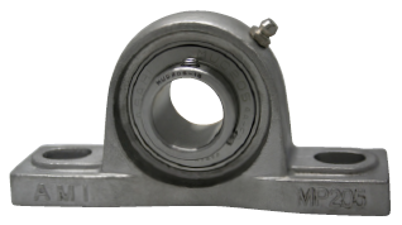

Prime Plus Series


AISI 440Cstainless steel insert, AISI 304 cast stainless steel housing


Typical Applications:
Bakeries, seafood, poultry & fresh meat processing, marine
Bore Size Range Availability:
1/2" to 2-1/2" and 12mm to 65mm



Choice Series


Kanigen corrosion resistant set screw locking AISI 52100 steel bearing insert, PBT thermoplastic housing

Typical Applications:
Beverage, snack foods, pickle processing, citrus processing
Bore Size Range Availability:
1/2" to 2"

Choice Plus Series


Kanigen corrosion resistant set screw locking AISI 52100 steel bearing insert, PBT thermoplastic housing

Typical Applications:
Canning, coating, grading, blending, bleaching
Bore Size Range Availability:
3/4" to 1-1/2"

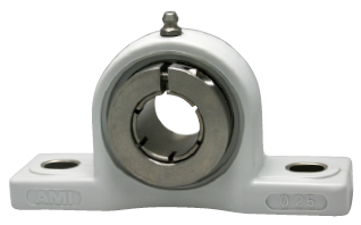

Choice Extra Series


Kanigen corrosion resistant Accu-Lok® AISI 52100 steel bearing insert, PBT thermoplastic housing

Typical Applications:
Food processing, conveyor, pickle processing, citrus processing, glass manufacturing, outside HVAC and labeling
Bore Size Range Availability:
3/4" to 1-1/2"

Select Series


Zinc corrosion resistant AISI 52100 steel bearing insert, nickel corrosion resistant housing

Typical Applications:
Agriculture, fertilizer & manure spreaders, lumber processing, wet recycling, pulp & paper, wastewater treatment, car wash systems
Bore Size Range Availability:
1/2" to 2-3/16" and 15mm to 50mm
